TW3000-02/03 TW4000-04/06 3/8" 1/2" 3/4" Air Filter Regulator

The NANPU Piggyback Compressed Air Filter - Regulator Device is outfitted with a 5 - micron brass filter cartridge, a pliable polycarbonate casing, and integrates semi - automated and self - acting draining features. Mounted on a strong metal support and furnished with a 0 - 290 psi pressure indicator, this equipment ensures accurate air pressure adjustment and efficient purification of compressed air setups.
    Contact us
    product details

    description1

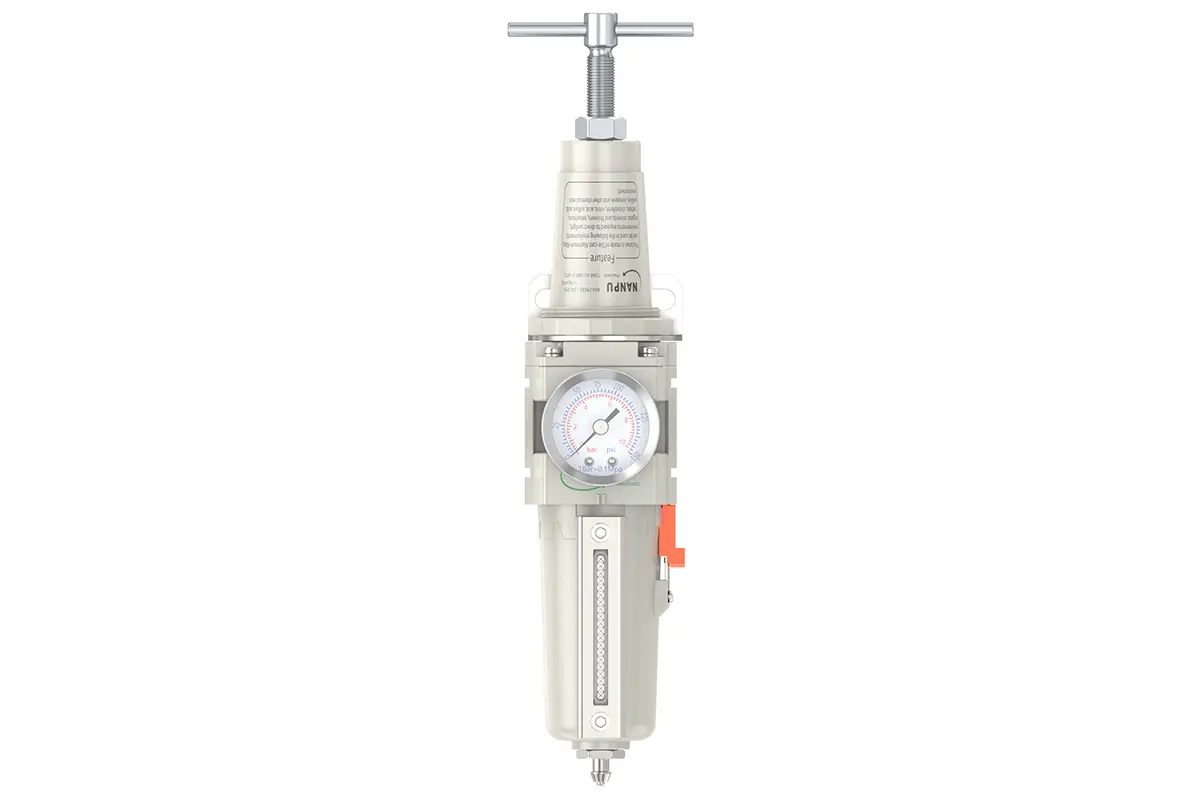

    1200X800 1

    TW3000-02/03 TW4000-04/06 3/8" 1/2" 3/4" Air Filter Regulator

    Manual Drain TW3000-02/03 TW4000-04/06 3/8" 1/2" 3/4" Air Filter Regulator
    Auto Drain TW3000-02D/03D TW4000-04D/06D 3/8" 1/2" 3/4" Air Filter Regulator

    NANPU
    TW3000-02/03 TW4000-04/06 3/8" 1/2" 3/4" Air Filter Regulator

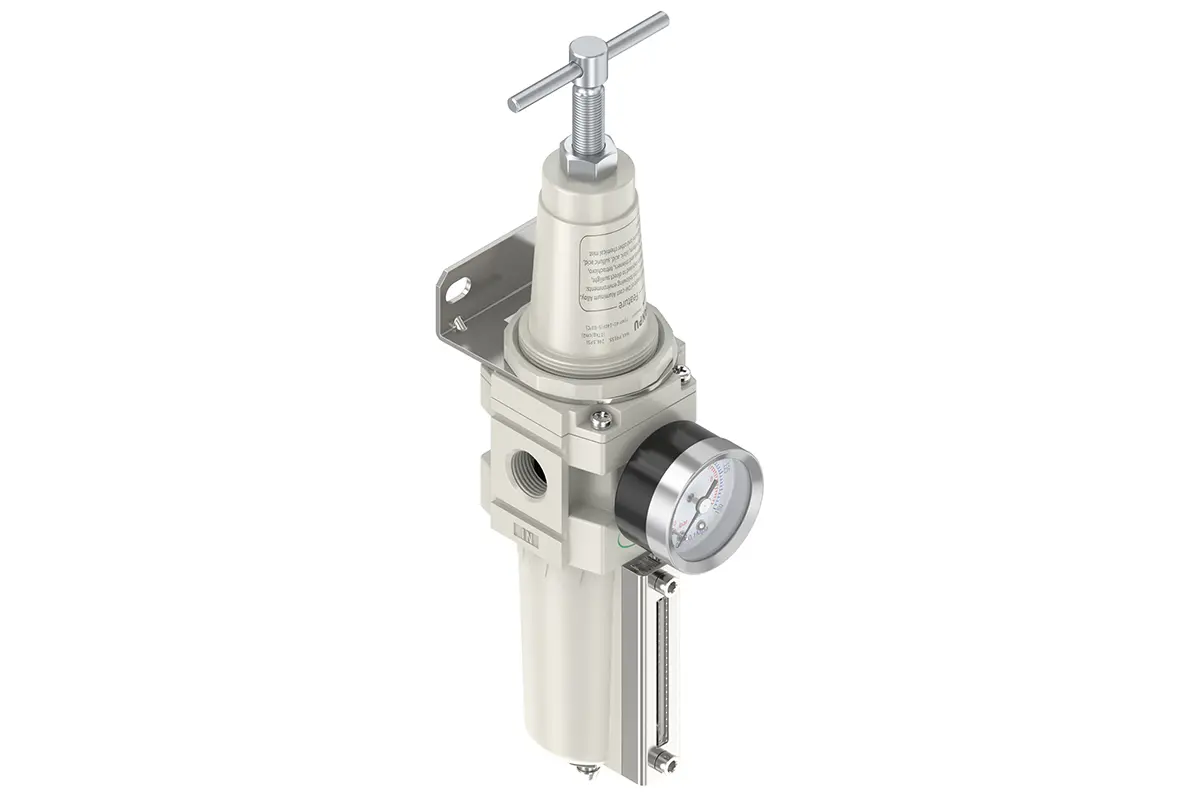

    1200X800 2
    TW 3000 MINI BSP D
    Series Number Port Size Thread Type Drainage Method
    3000 02:1/4"   03:3/8" BSP Blank: Differential Pressure Drain
    4000 04:1/2"   06:3/4" NPT A: Manual Drain

    NANPUTechnical Specifications

    Max Input Pressure 2.0Mpa{20.39kgf/cm²} 290Psi
    Max Operating Pressure 1.8Mpa{18.35kgf/cm²} 261Psi
    Temperature Range  5~60℃
    Filtration Accuracy 5μm、40μm
    Body Material Aluminium/Zinc
    Bowl Guard YES
    Suggested Oil Turbine Oil No. 1 ISO-VG32
    Pressure Range TC3000~4000:0.05~1.8Mpa（0.51~18.35kgf）
    Model Model
    Manual Drain Auto Drain (L/min）Rated Flow Rate
    TW3000-02 TW3000-02D 2000
    TW3000-03 TW3000-03D 2000
    TW4000-04 TW4000-04D 4000
    TW4000-06 TW4000-06D 4500
    Product Benefits
    All Portsize Piggyback Air Filter (0.01μm、 5μm、40μm)
    Regulator & Filter air dryer system
    Temperature Range: 41-140℉ (5-60℃）
    1200X800 3
    Installation and Operating
    "1,Preparation
    All calibration modules must meet the topmost flow rate standards.​
    Before installation, scrub the ports and connectors thoroughly to effectively keep debris from entering the air conduit.​
    Check that the airflow direction corresponds with the arrow symbols on the product housing, and ensure the port and thread sizes are properly matched.
    "2. Pressure Adjustment
    Raise the pressure gauge dial and start spinning it. Twisting in a clockwise way will cause a slow rise in pressure, while turning it counterclockwise will result in a drop. Once the target pressure figure is reached, stop spinning and firmly fix the dial. Not properly performing this fixing step may lead to possible leakage problems."
    1200X800 4

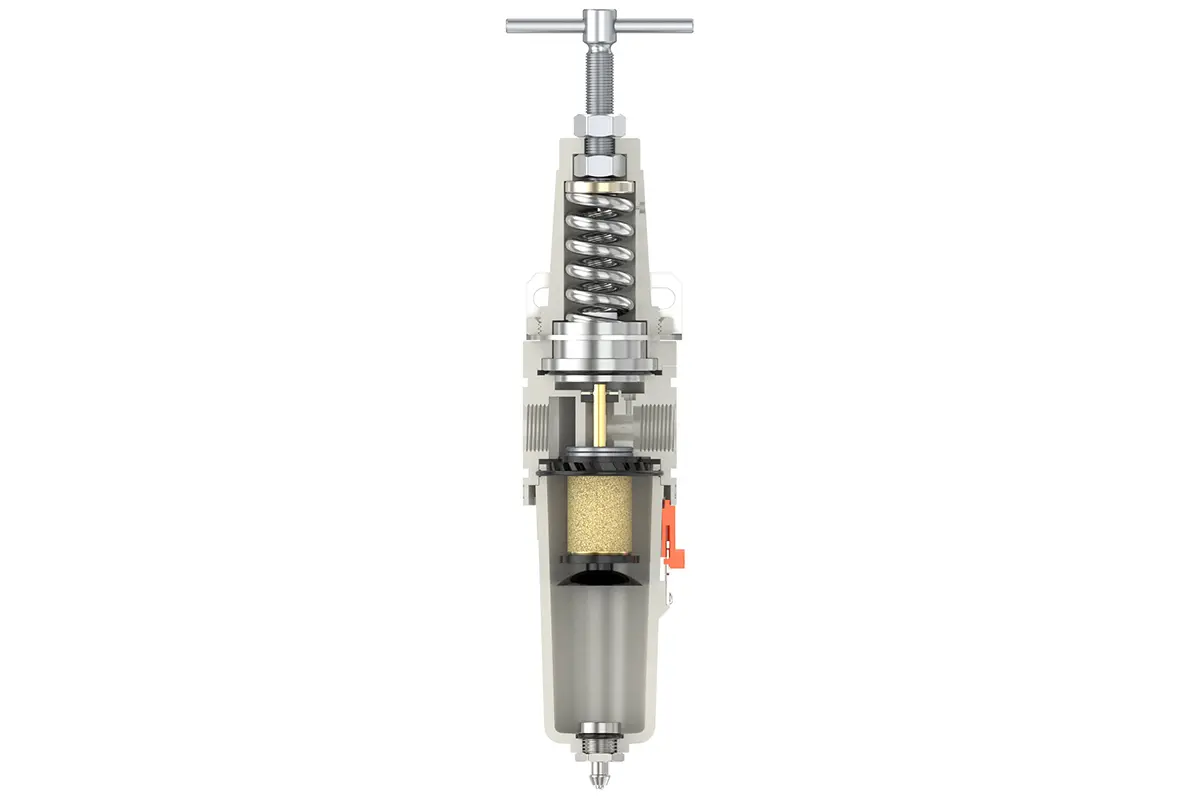

    Pressure Adjustment and Drainage

    "3. Dial Reading

    5-Micron Brass Filter Element: Features excellent filtering capability, a notably prolonged working life, and allows for repeated uses.​

    0.5 and 0.01-Micron Filter Elements: Effectively get rid of tiny pollutants.​

    The drainage pipe functions on its own. It activates to expel materials when there's no pressure and shuts when air flows through. Once the water level goes beyond the pre-set maximum, prompt draining is needed; ignoring this will lower moisture-removal performance."

    "4.Drainage

    The drainage pipe comes with a self-starting system. It opens up to discharge substances when there is no pressure and closes the moment air passes through. When the water level exceeds the declared upper boundary, immediate draining is vital; not doing so will result in inferior moisture-removal efficiency.​

    The connector on the drain cover serves as a connection for air hoses and can be taken off according to particular operational needs."

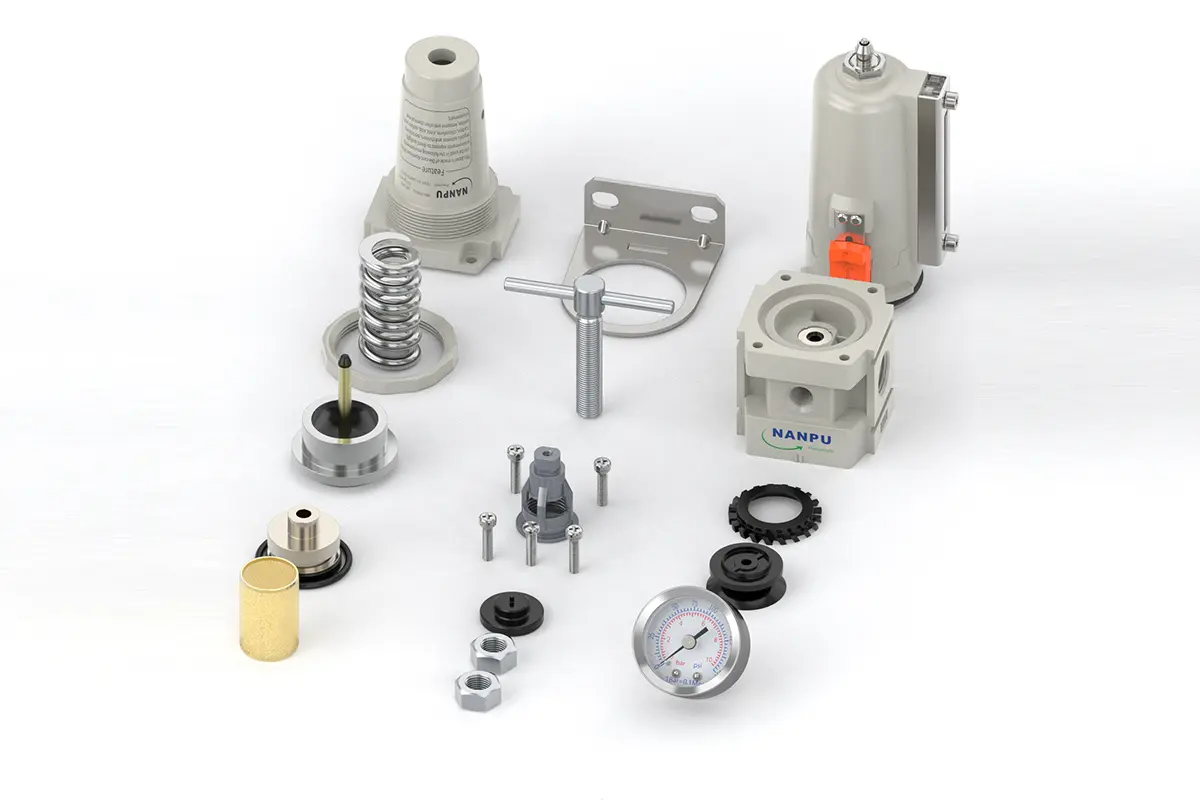

    1200X800 6
    notice

    Employ a correctly sized wrench to secure the connectors to the required torque level so as to avoid seepage. During the initial setup, an air discharge event might happen. This is not a leak; instead, it stems from the pressure difference between internal and external conditions, which requires the release of surplus air. In such instances, let the system settle for a sufficient time, after which it will function optimally.
