NC3010-03/NC3010-03D/NC4010-04/NC4010-04D F.R.L.Combination Air Filter, Regulator & Lubricator with Embedded pressure gauge
description1
NC3010-03/NC3010-03D/NC4010-04/NC4010-04D F.R.L.Combination Air Filter, Regulator & Lubricator with Embedded pressure gauge

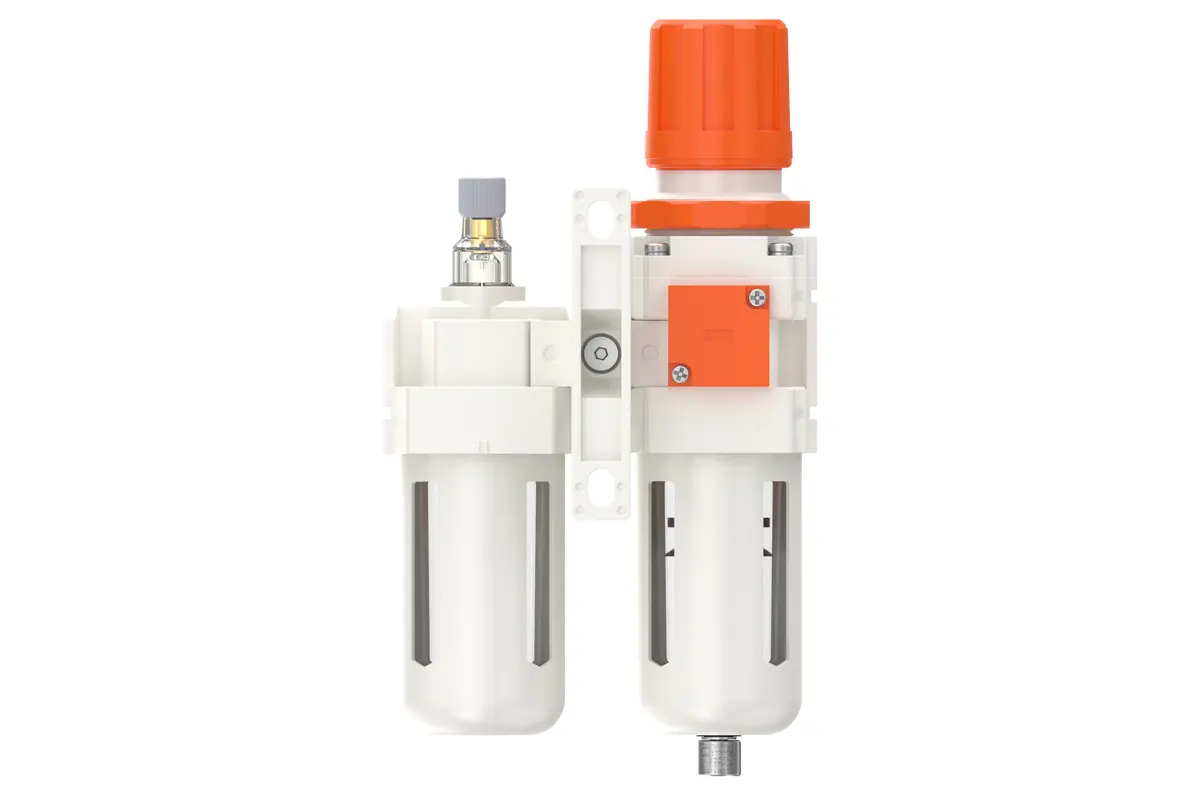

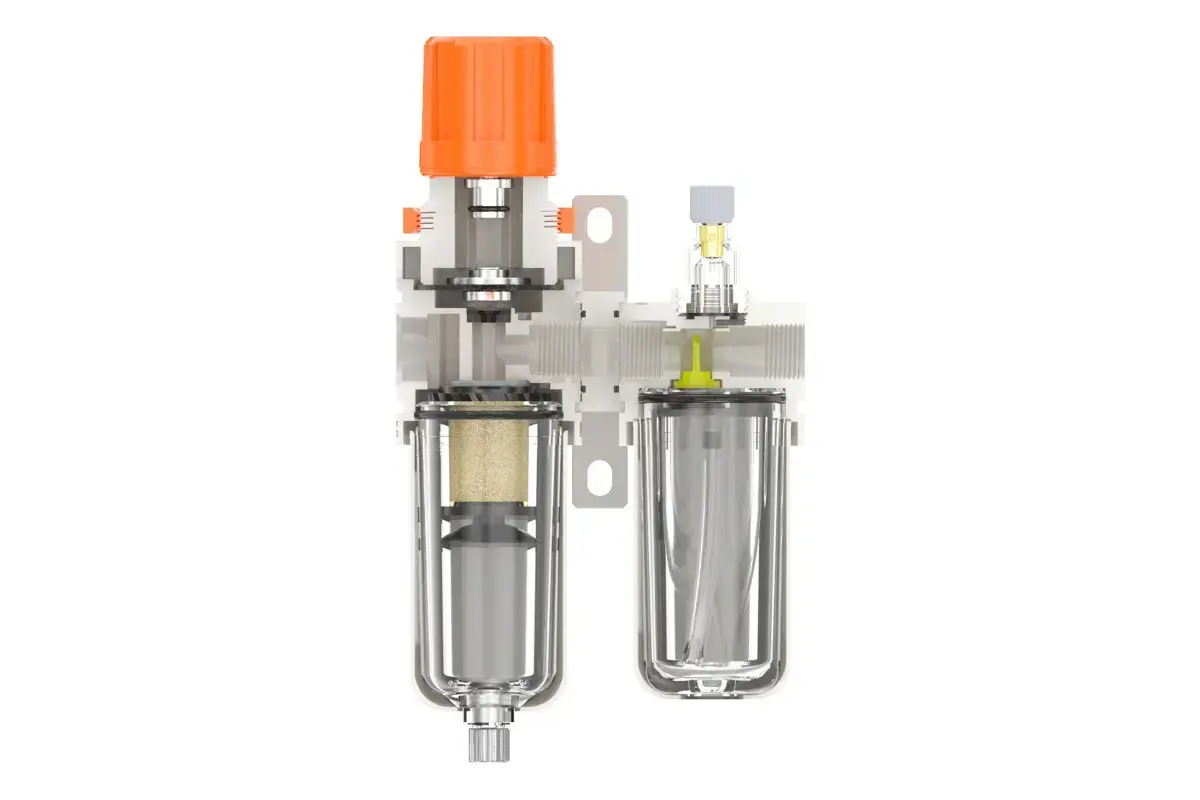

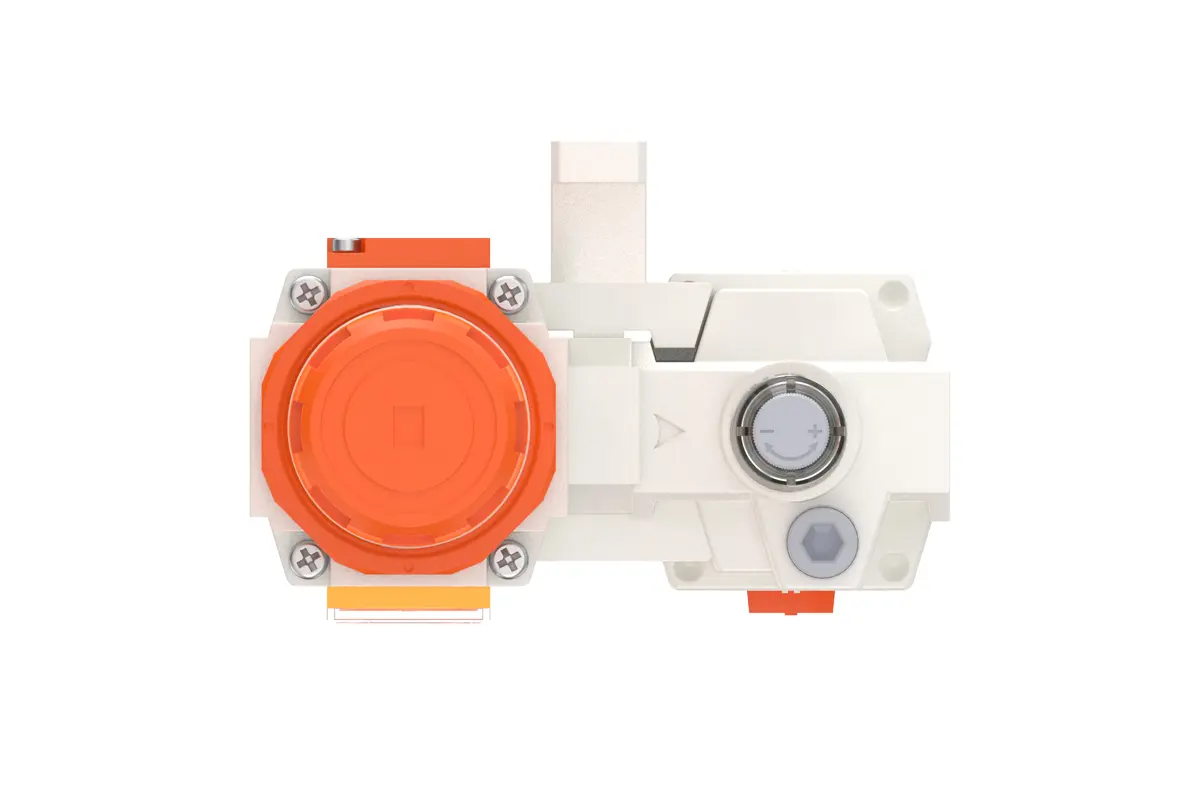

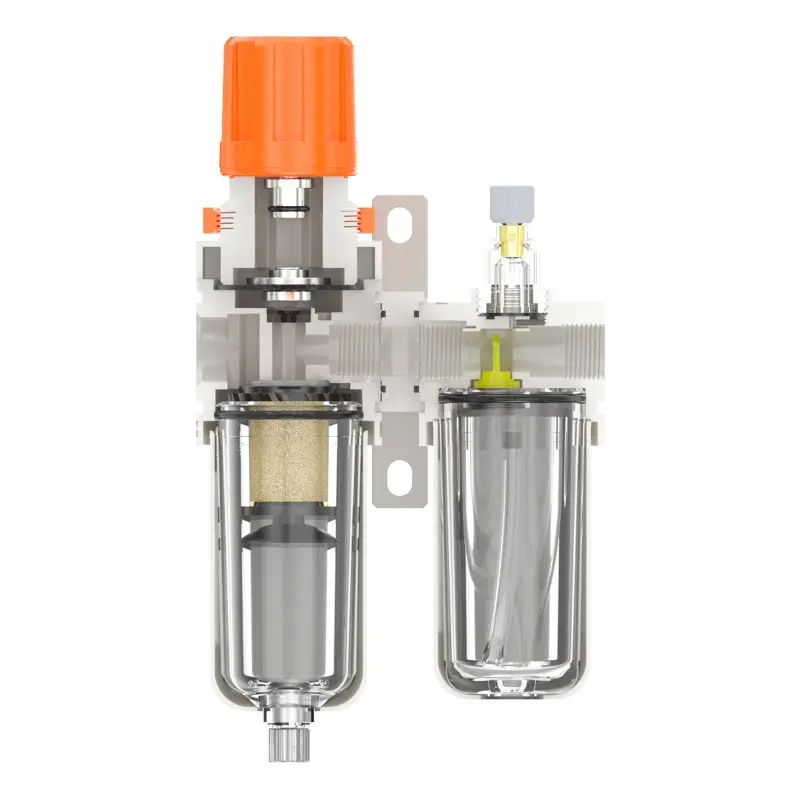

The Filter, Regulator, and Lubricator (FRL) assembly integrates three integrated components with a built-in pressure gauge. The filtration module is designed to remove most liquid and particulate impurities from the compressed air flow. The pressure-regulating valve is intended for accurate adjustment of the outlet pressure. The lubrication unit supplies lubricant to pneumatic systems, thus prolonging their service life.
NANPUNC3010-03/NC3010-03D/NC4010-04/NC4010-04D F.R.L.Combination Air Filter, Regulator & Lubricator with Embedded pressure gauge
|
NC |
3010 |
03 |
BSP |
D |
|
Series Number |
Body Size |
Port Size |
Thread Type |
Drainage Method |
|
|
2000 |
02：1/4" |
BSP |
Blank: Differential Pressure Drain |
|
|
3000 |
03：3/8" |
NPT |
A: Manual Drain |
|
|
4000 |
04：1/2" |
PT |
D: Auto Drain |
NANPUTechnical Specifications
|
Technical Specifications |
|
|
|
Max Input Pressure |
1.2Mpa{12.24kgf/cm²} /174.04Psi |
|
|
Max Operating Pressure |
1.0Mpa{10.2kgf/cm²} /145Psi |
|
|
Temperature Range |
5~60℃ |
|
|
Filtration Accuracy |
0.01μm、 5μm、40μm |
|
|
Bowl Material |
Polycarbonate |
|
|
Bowl Guard |
AC2000（None） AC3000~5000（YES） |
|
|
Suggested Oil |
Turbine Oil No. 1 ISO-VG32 |
|
|
Pressure Range |
AC2000~5000/0.05~0.85Mpa（0.51~8.7kgf/cm² )/0~125Psi |
|
|
Model |
Model |
|
|
Manual Drain |
Auto Drain |
(L/min）Rated Flow Rate |
|
NC2010-02 |
NC2010-02D |
500 |
|
NC3010-02 |
NC3010-02D |
2000 |
|
NC3010-03 |
NC3010-03D |
2000 |
|
NC4010-04 |
NC4010-04D |
4000 |
|
NC4010-06 |
NC4010-06D |
4500 |
|
Product Benefits |
|
All Portsize Piggyback Air Filter (5 Micron Element Standard), Regulator & Lubricator (FRL) |
|
Dry Air, Pressure Regulating & Lubricate Air |
|
Temperature Range: 41-140℉ (5-60℃） |
NANPUNC3010-03/NC3010-03D/NC4010-04/NC4010-04D

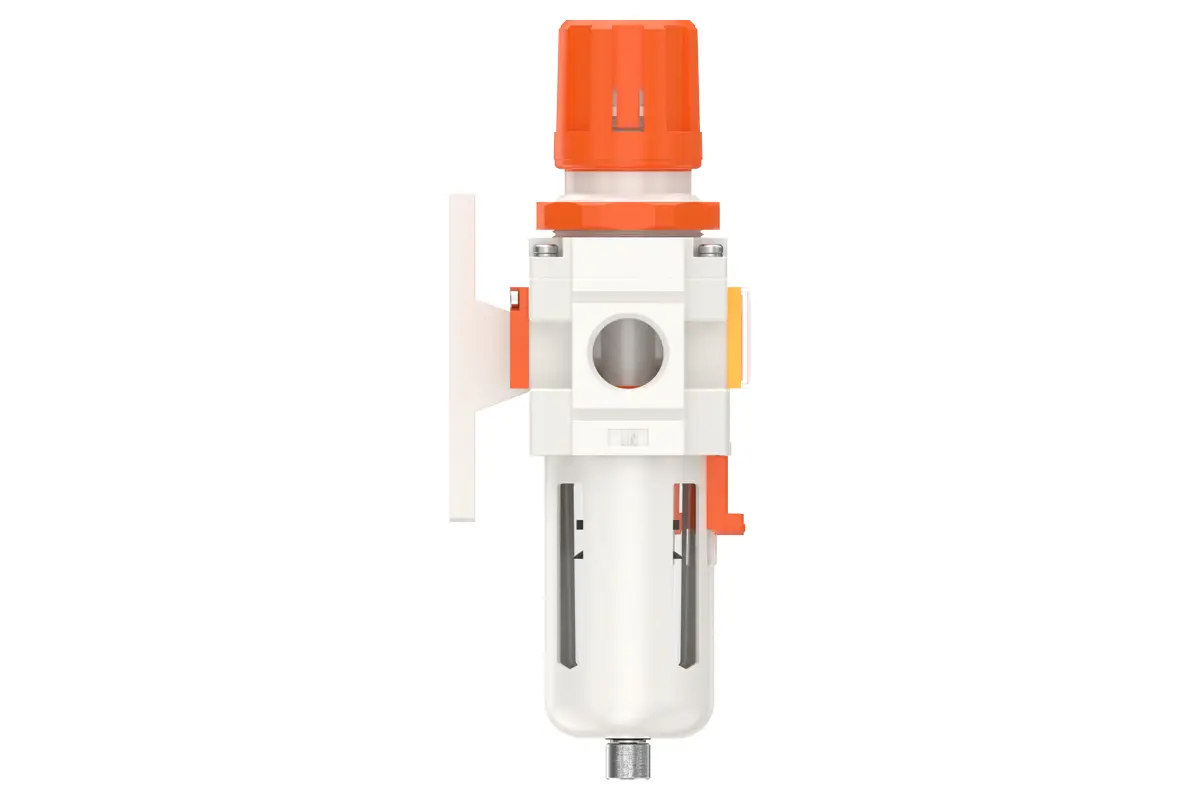

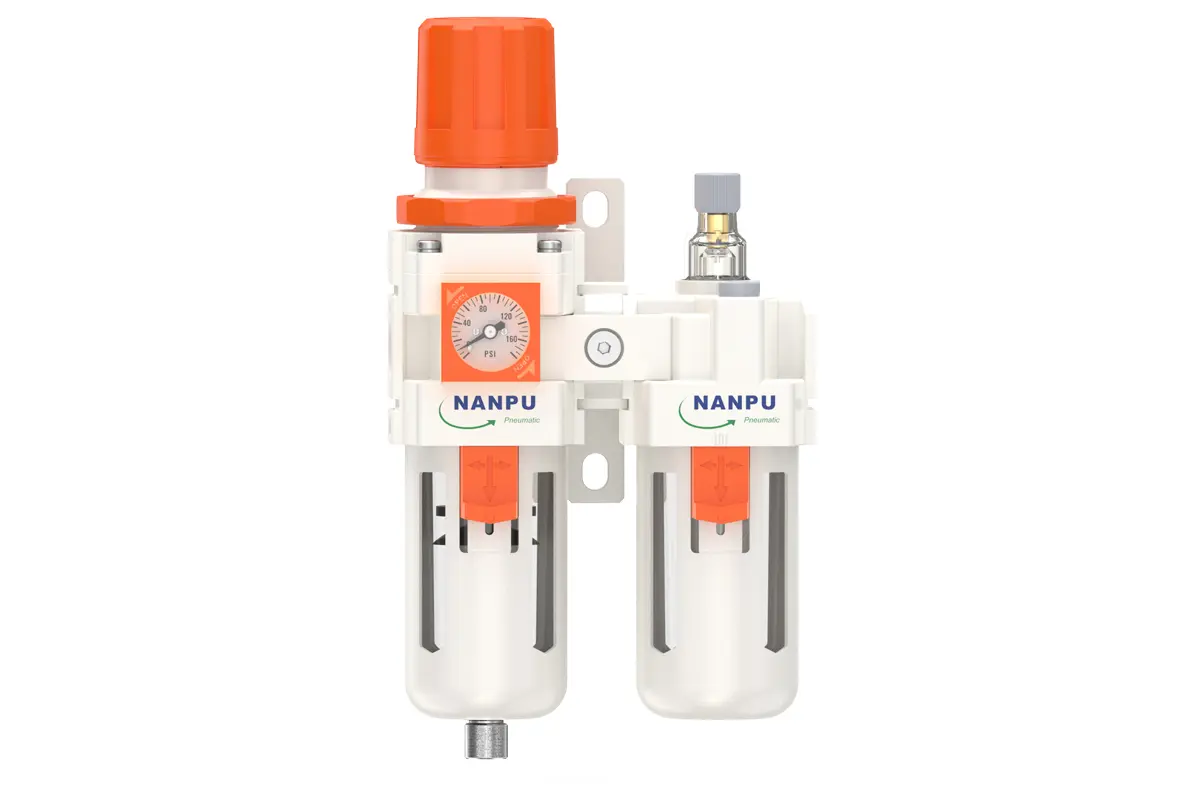

Manual Drain NC3010-03/NC3010-03D Portsize: 3/8" F.R.L.Combination Air Filter, Regulator & Lubricator

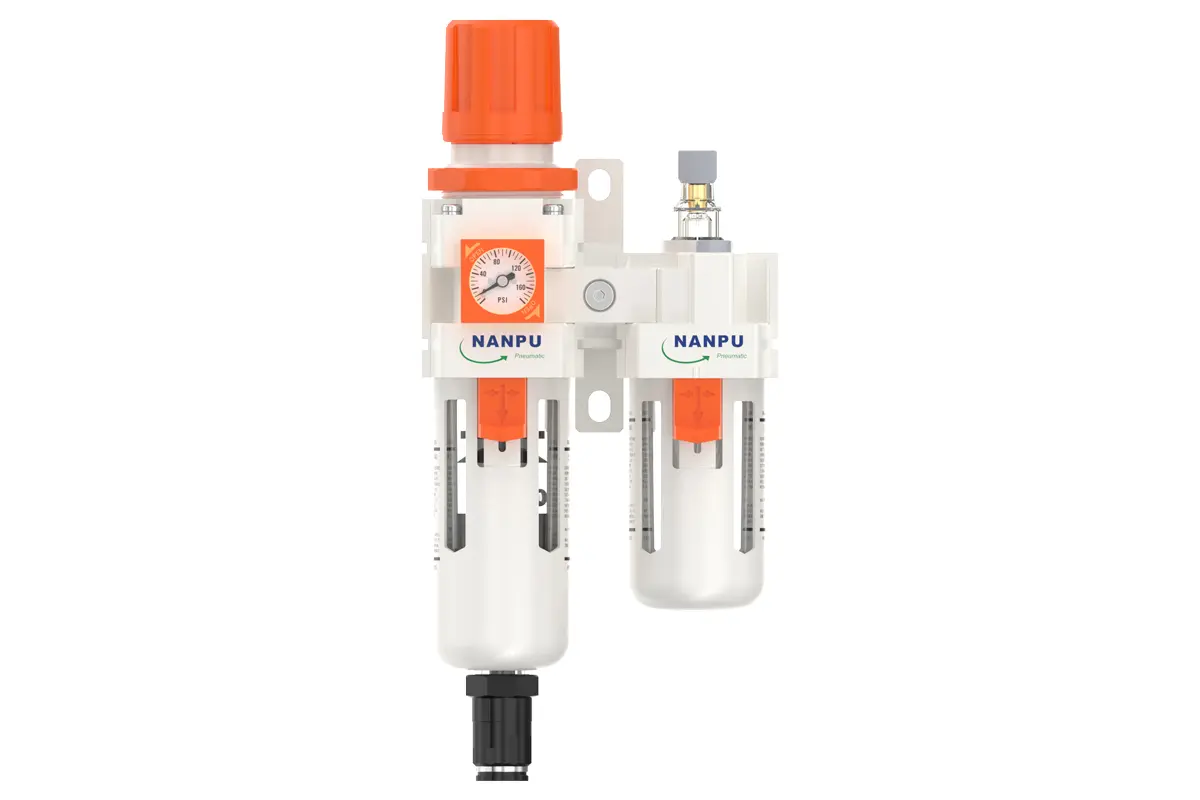

Auto Drain NC4010-04/NC4010-04D Portsize: 1/2" F.R.L.Combination Air Filter, Regulator & Lubricator
1.Preparation
Each calibration component shall conform to the maximum flow rate specification.Prior to installation, all ports and connectors shall be meticulously cleaned to avert dust intrusion into the air circuit.Ensure that the air flow direction is rigidly aligned with the arrow indications on the product casing, and validate that port and thread dimensions are appropriately matched.
2. Pressure Adjustment
Lift the pressure gauge knob and commence rotation:Clockwise rotation shall progressively increase the pressure in a consistent manner, whereas counterclockwise rotation will reduce it.Halt rotation upon achieving the target pressure value and firmly depress the knob.Failure to adhere to this step may give rise to pressure leakage problems.
3. Dial Reading
Ensure the pressure gauge is rigidly mounted to the main assembly. During pressure adjustment, closely monitor the gauge to validate that readings increase and decrease in a consistent manner.
4.Drainage
The drain valve functions automatically. Under zero-pressure conditions, it will unlatch to expel moisture and reseal when air flow is present. Once the water level reaches or surpasses the permissible maximum, immediate drainage is imperative; non-compliance will lead to reduced dehumidification efficiency. The fitting on the drain assembly is engineered for air hose connection and can be readily disconnected as per specific operational needs.
5.Oil Adjustment
Rotate the needle valve clockwise to augment the oil intake rate. Conversely, counterclockwise rotation of the needle valve will diminish the oil intake rate or effect a complete cessation.
6.Refueling
Turn the filling screw clockwise. The oil volume introduced shall not exceed 80% of the container's capacity. Upon completion of the refilling procedure, securely fasten the filling screw.
