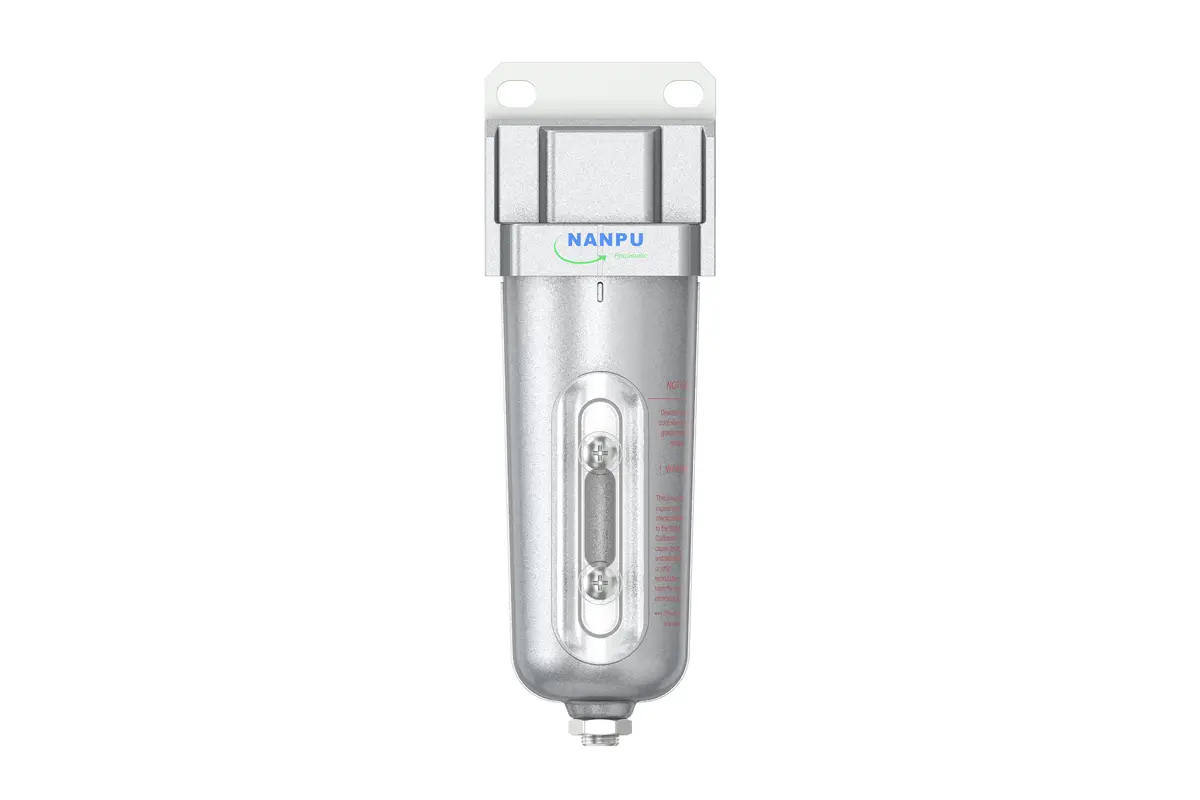

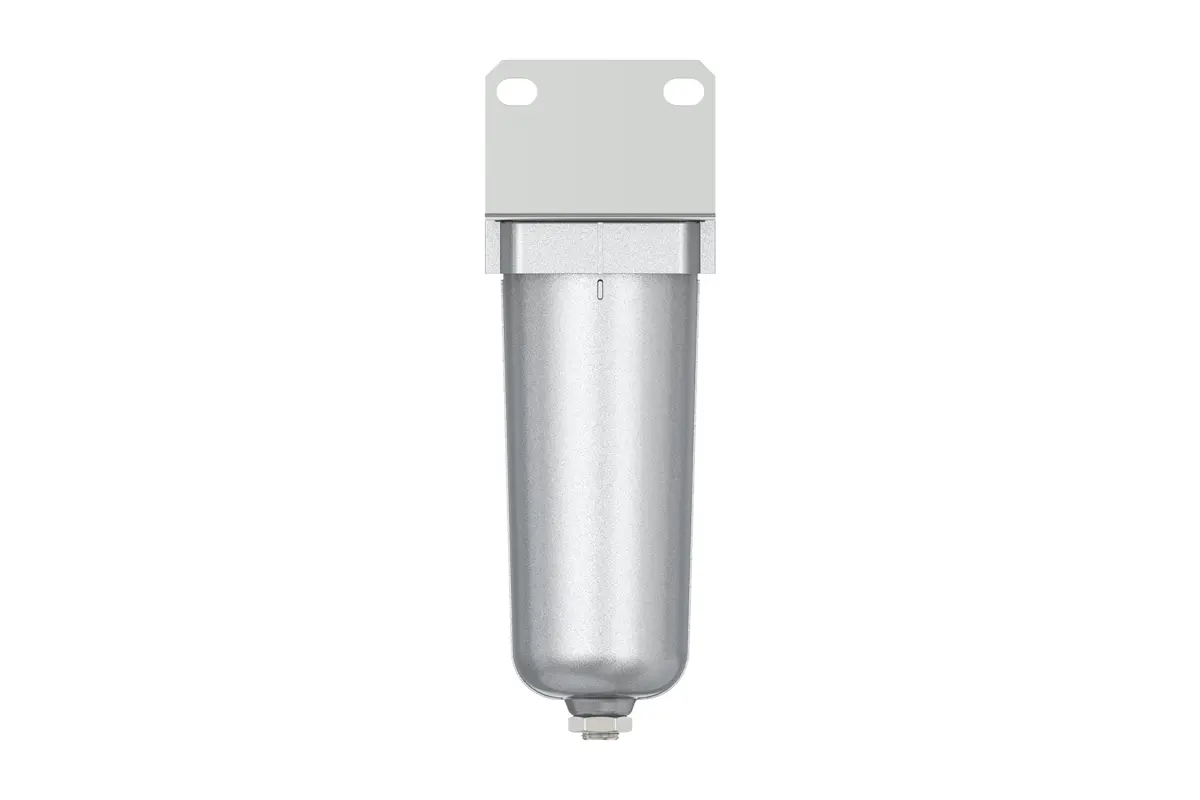

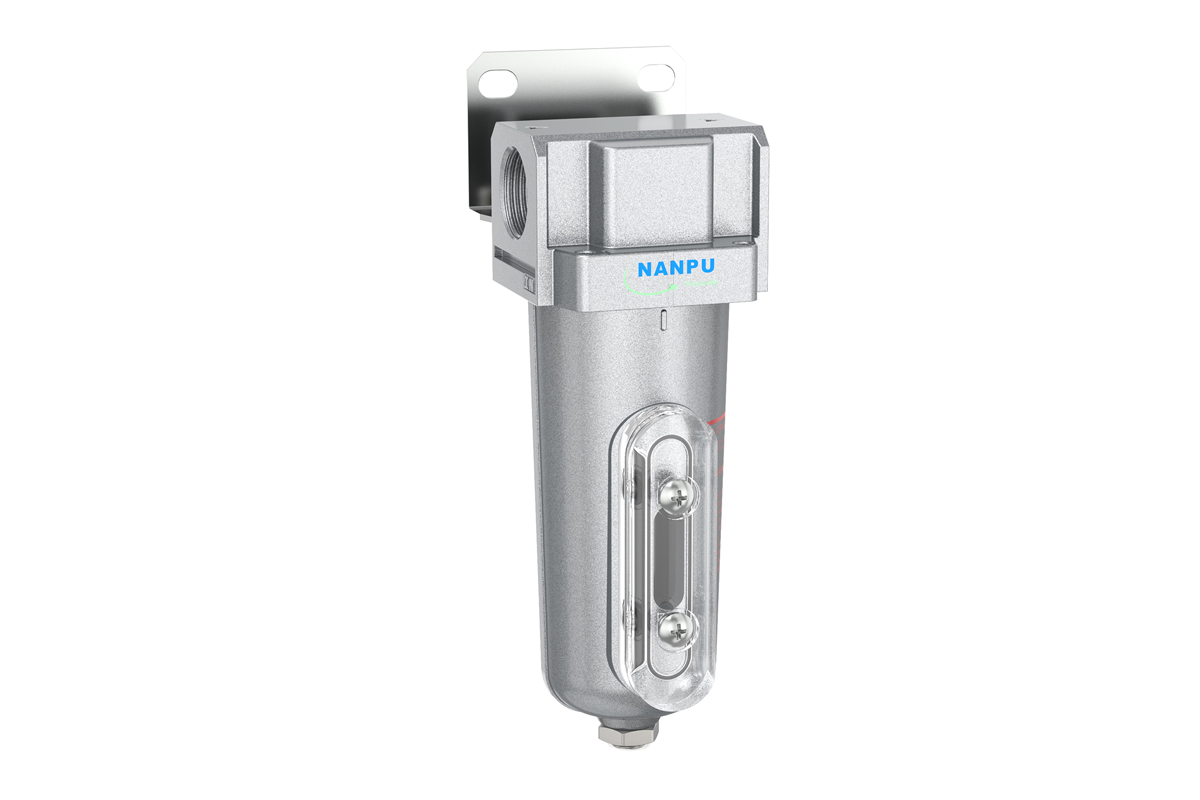

NANPU FD44/FD46 Desiccant Dryer

NANPU Aluminum Alloy Desiccant Dryer Dehumidifies Compressed Air Lines, delivers a safer and more efficient drying solution for pneumatic equipment, effectively filters moisture and particles from air. Features more stringent structural design to avoid air leakage. Applicable to any compressor, air tank, spray gun, or air system, precisely regulating and sustaining constant air pressure for tools and equipment.

    Contact us
    product details

    description1

    3

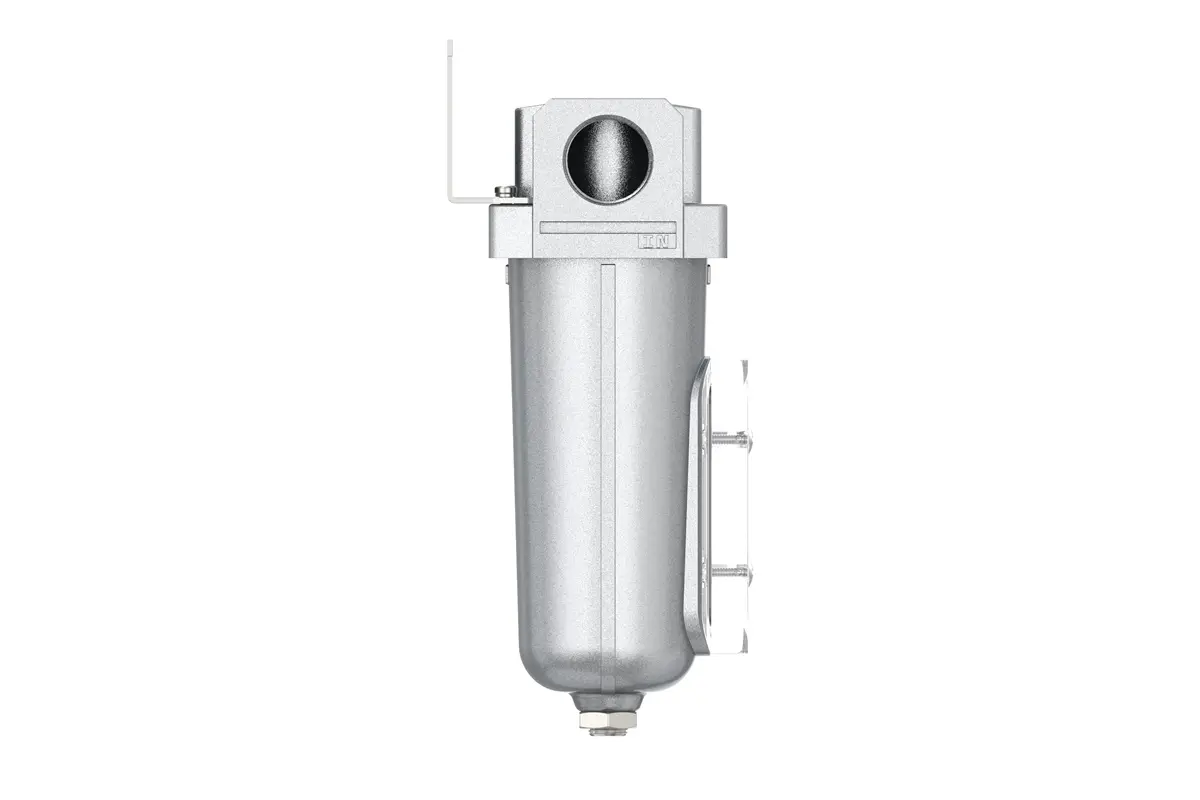

    NANPU FD44/FD46 Desiccant Dryer

    Manual Drain FR44/FR46 Air Filter, Regulator
    Auto Drain FR44-D/FR46-D Air Filter, Regulator

    NANPU
    FR Filter Regulator

    5
    FD 44 NPT
    Series Number Port Size Thread Type
    44:1/2" BSP
    46:3/4" NPT
    PT

    NANPUTechnical Specifications

    Technical Specifications
    Max Input Pressure 1.6Mpa{16.32kgf/cm²} 232.06Psi
    Max Operating Pressure 1.48Mpa{15.09kgf/cm²} 214.7Psi
    Temperature Range  -5~60℃
    Body Material Aluminum Alloy
    Bowl Guard YES
    Filter Bead Material Desiccant


    Model Specification
    （L/min）/Rated Flow Rate
    FD44 4000
    FD46 4000


    1 A desiccant dryer, and an air regulator, with diverse and comprehensive air treatment functions.
    2.It is equipped with a Aluminum Alloy bowl, which is helpful for relevant operations in the air treatment process.

    3.The Desiccant Air Dryer allows the Air to be Thoroughly Dried and Cleaned before it Enters your Pneumatic Tools. The Desiccant Beads need to be Added to the Metal Bowl. When it needs to be Replaced, the Beads will Change from Blue to Pink.
    4.It is of the medium flow type and can meet certain air consumption requirements.
    5.It has a wide range of applications, being suitable for paint spray and plasma cutters. With 1/2" 3/4" interface, it has good adaptability.


    NANPUPreparation

    1

    The high-performance metallic bowl, integrated with a visible sight glass, serves as a reliable safeguard for both operators and the entire system throughout the entire operational process. This robust metallic enclosure, equipped with a transparent sight glass for clear visibility, ensures comprehensive protection for personnel and the system during all stages of operation. The superior-quality metal bowl, featuring an observable sight glass, provides consistent and effective protection to you and the system across the full scope of procedures.

    6
    High Degree of Safety

    The high-performance metallic bowl, integrated with a visible sight glass, serves as a reliable safeguard for both operators and the entire system throughout the entire operational process. This robust metallic enclosure, equipped with a transparent sight glass for clear visibility, ensures comprehensive protection for personnel and the system during all stages of operation. The superior-quality metal bowl, featuring an observable sight glass, provides consistent and effective protection to you and the system across the full scope of procedures.

    7

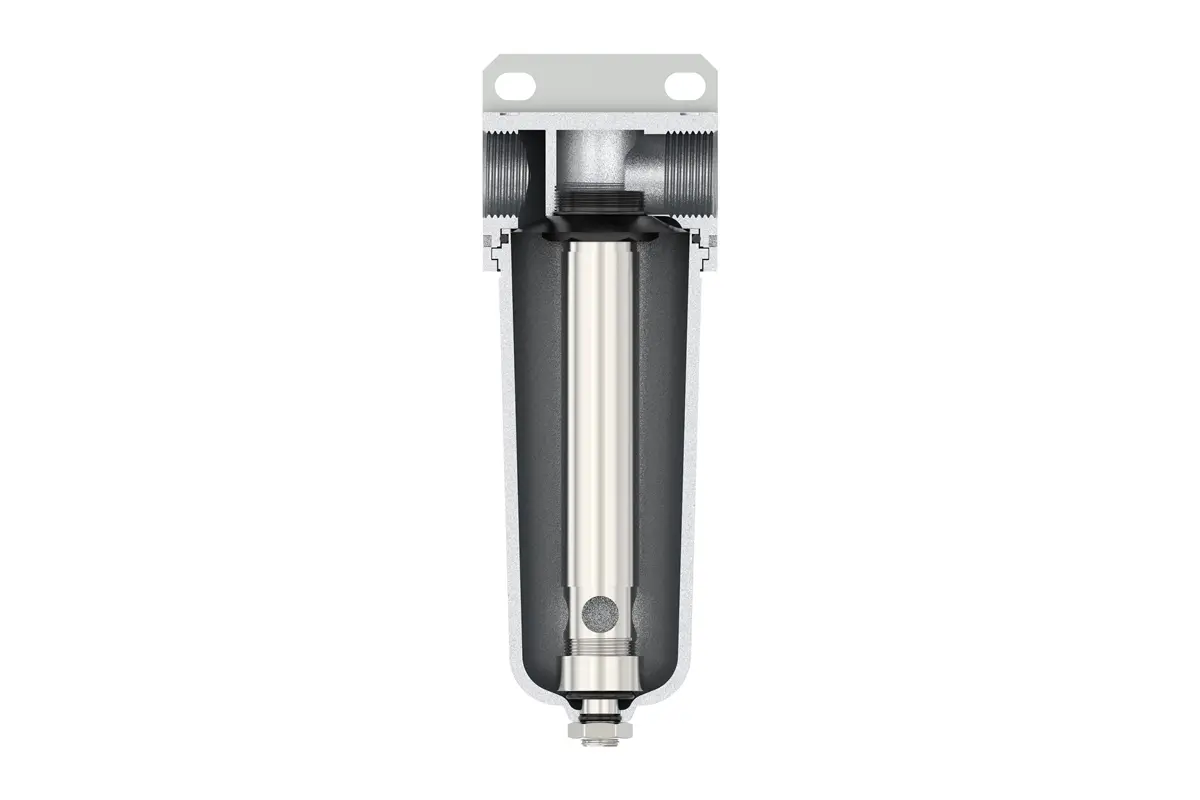

    Desiccant Air Dryer

    The Desiccant Air Dryer allows the Air to be Thoroughly Dried and Cleaned before it Enters your Pneumatic Tools. The Desiccant Beads need to be added to the Metal Bowl. When it needs to be Replaced, the Beads will Change from Blue to Pink.
