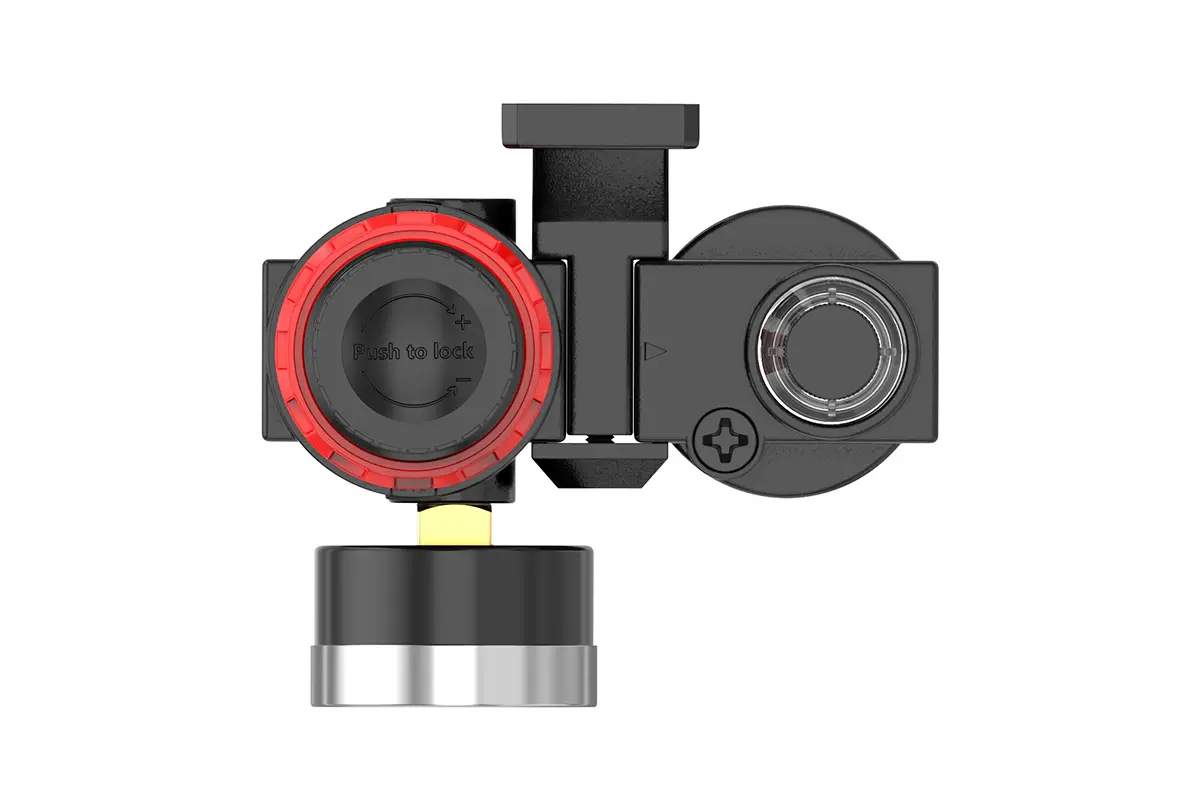

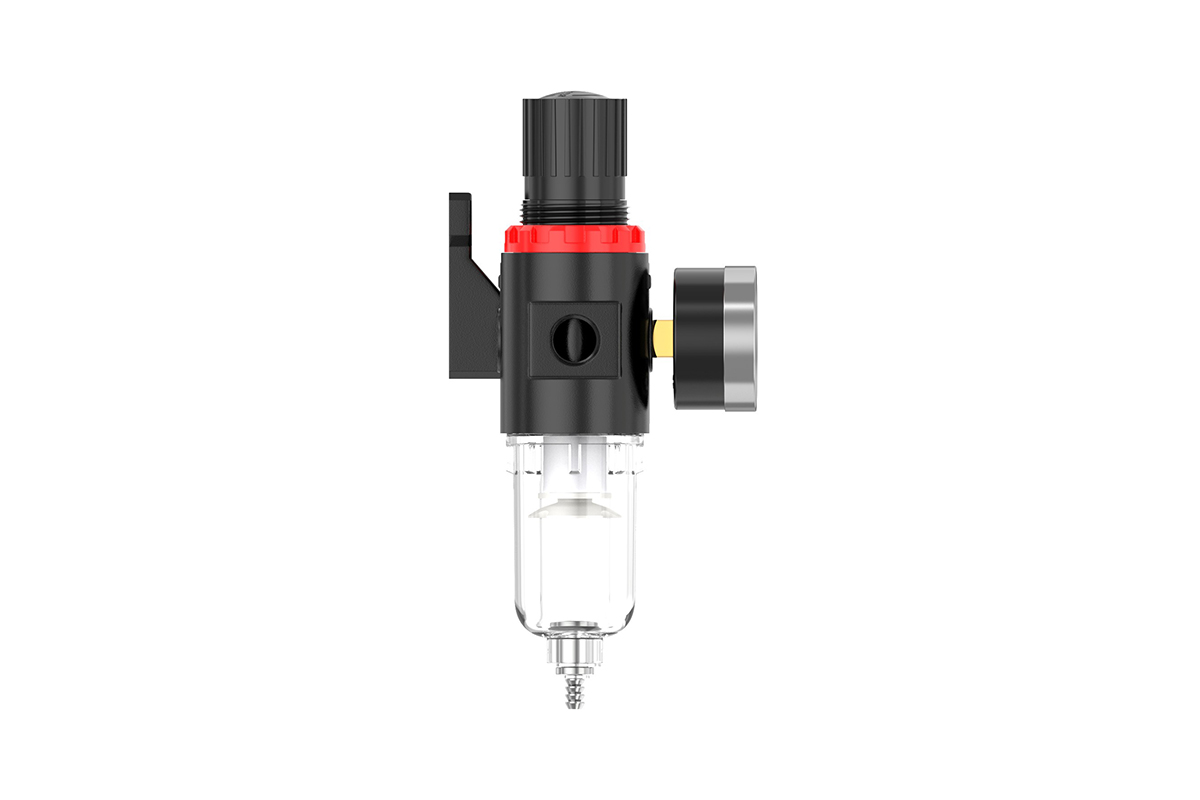

AFC2000 14 F.R.L.Combination Air Filter, Regulator & Lubricator
description1
AFC2000/AFC2000-D

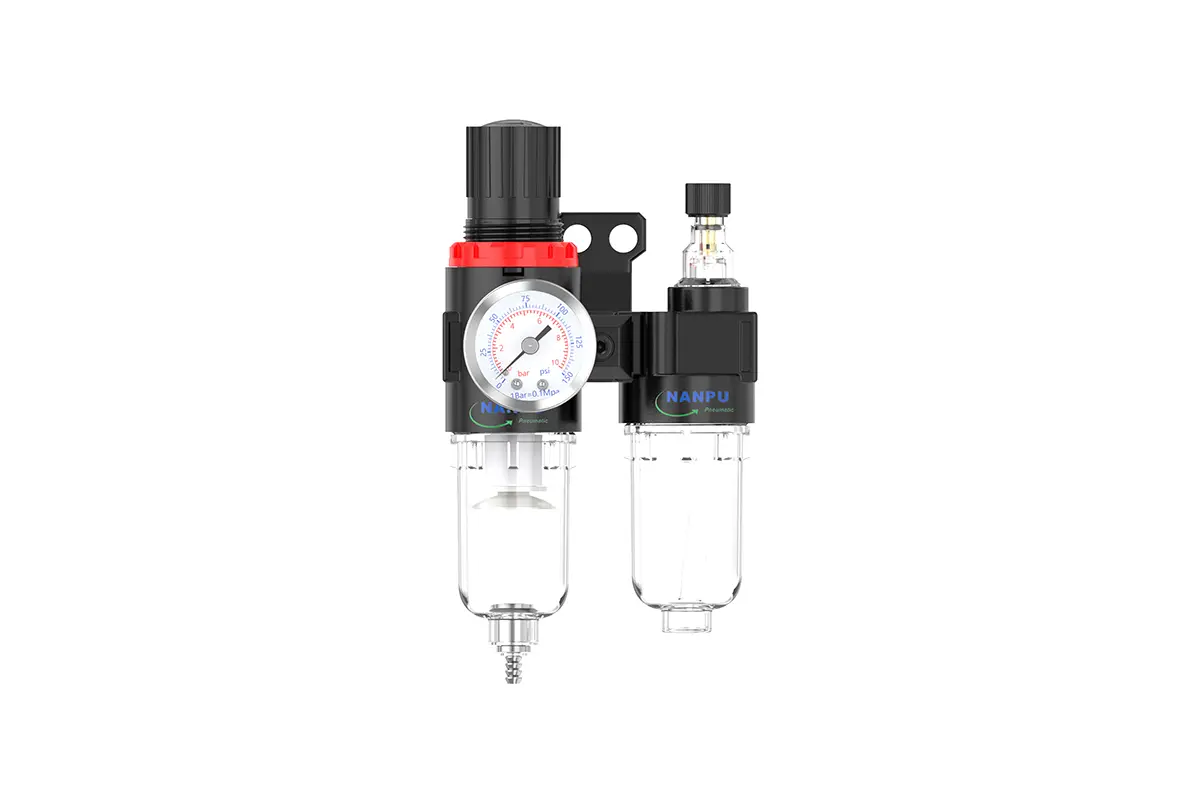

Manual Drain AFC2000 1/4" F.R.L.Combination Air Filter, Regulator & Lubricator

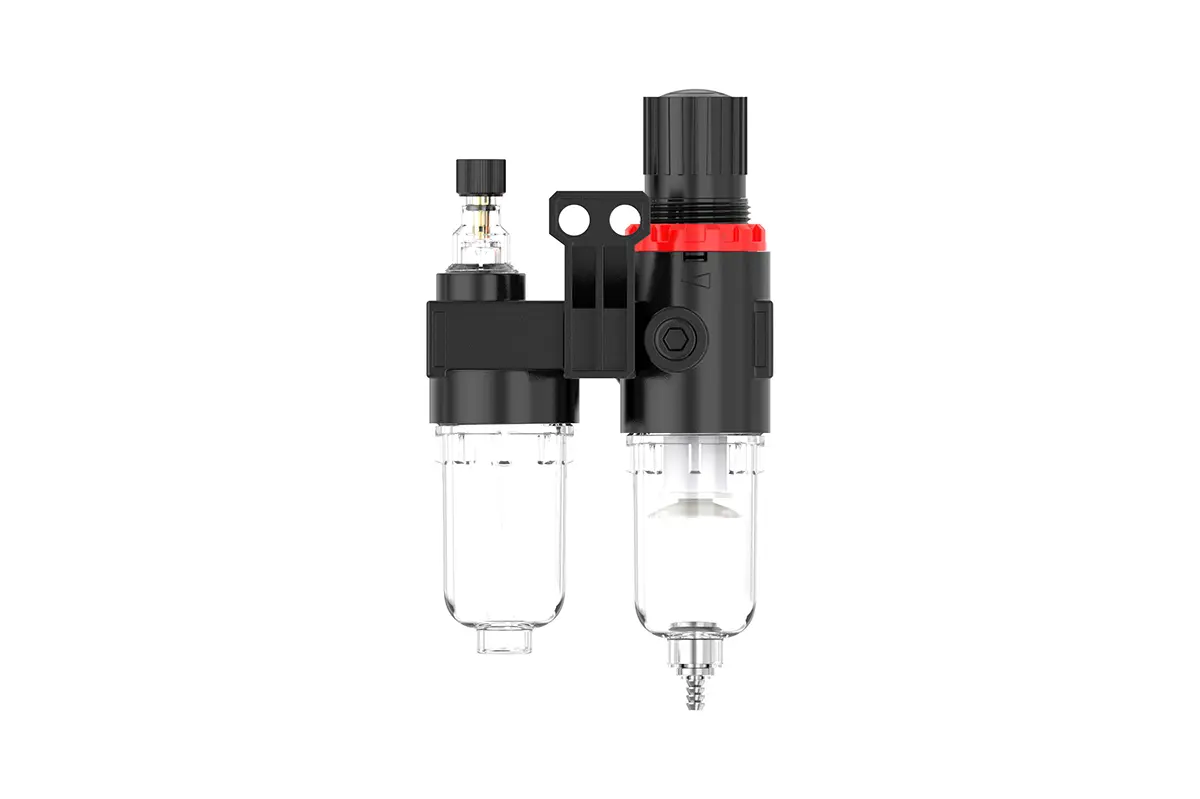

Auto Drain AFC2000-D 1/4" F.R.L.Combination Air Filter, Regulator & Lubricator
NANPUAFC2000 1/4"
| AFC | 2000 | BSP | D | |
| Series Number | Body Size | Port Size | Thread Type | Drainage Method |
| 2000 | 02：1/4" | BSP | Blank: Differential Pressure Drain | |
| 3000 | 03：3/8" | NPT | A: Manual Drain | |
| 4000 | 04：1/2" | PT | D: Auto Drain |
NANPUTechnical Specifications
| Model | Model | |
| Manual Drain | Auto Drain | (L/min）Rated Flow Rate |
| AFC2000 | AFC2000-D | 650 |
| BFC2000 | BFC2000-D | 1400 |
| BFC3000 | BFC3000-D | 1400 |
| BFC4000 | BFC4000-D | 1400 |
| Max Input Pressure | 1.0Mpa{10.2kgf/cm²} 145Psi |
| Max Operating Pressure | 1.0Mpa{10.2kgf/cm²} /145Psi |
| Temperature Range | 5~60℃ |
| Filtration Accuracy | 5μm、40μm |
| Bowl Material | Polycarbonate |
| Bowl Guard | AFC2000（None） BFC2000-4000（YES） |
| Suggested Oil | Turbine Oil No. 1 ISO-VG32 |
| Pressure Range | AC/BC 0.05~0.85Mpa（0.51~8.7kgf/cm² )/0~125Psi |

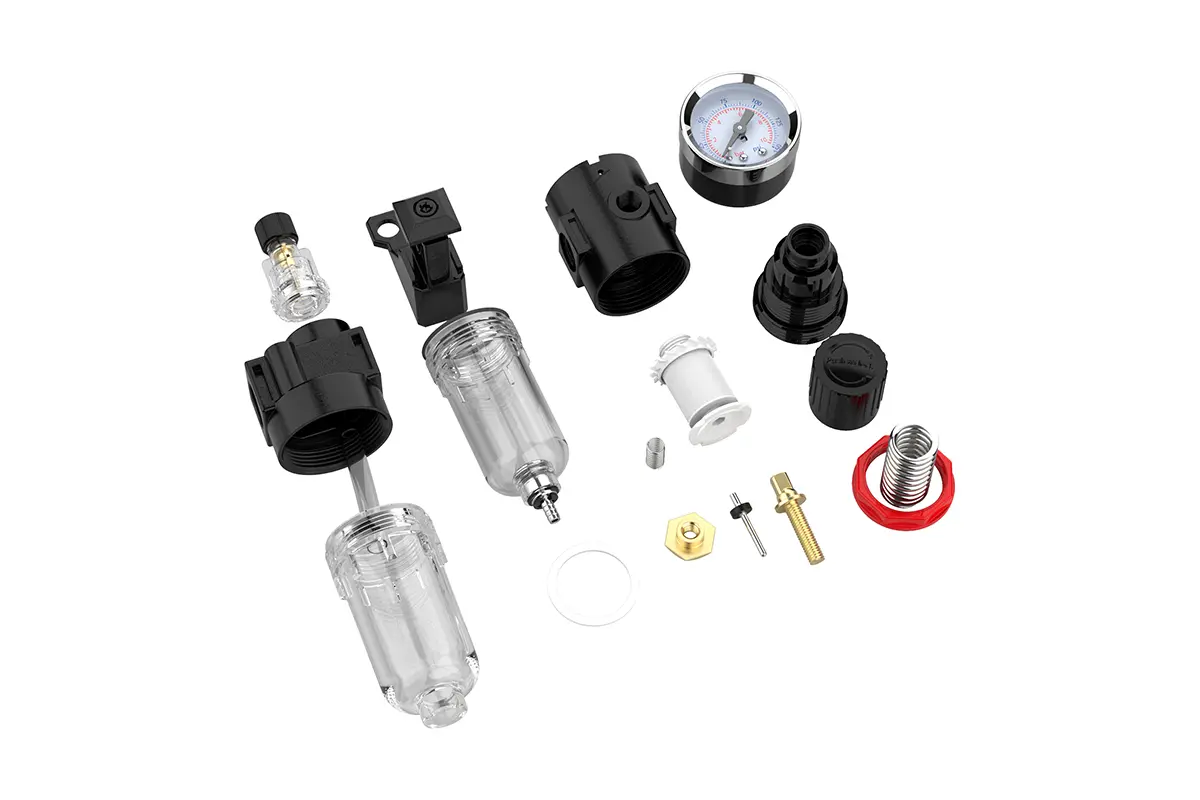

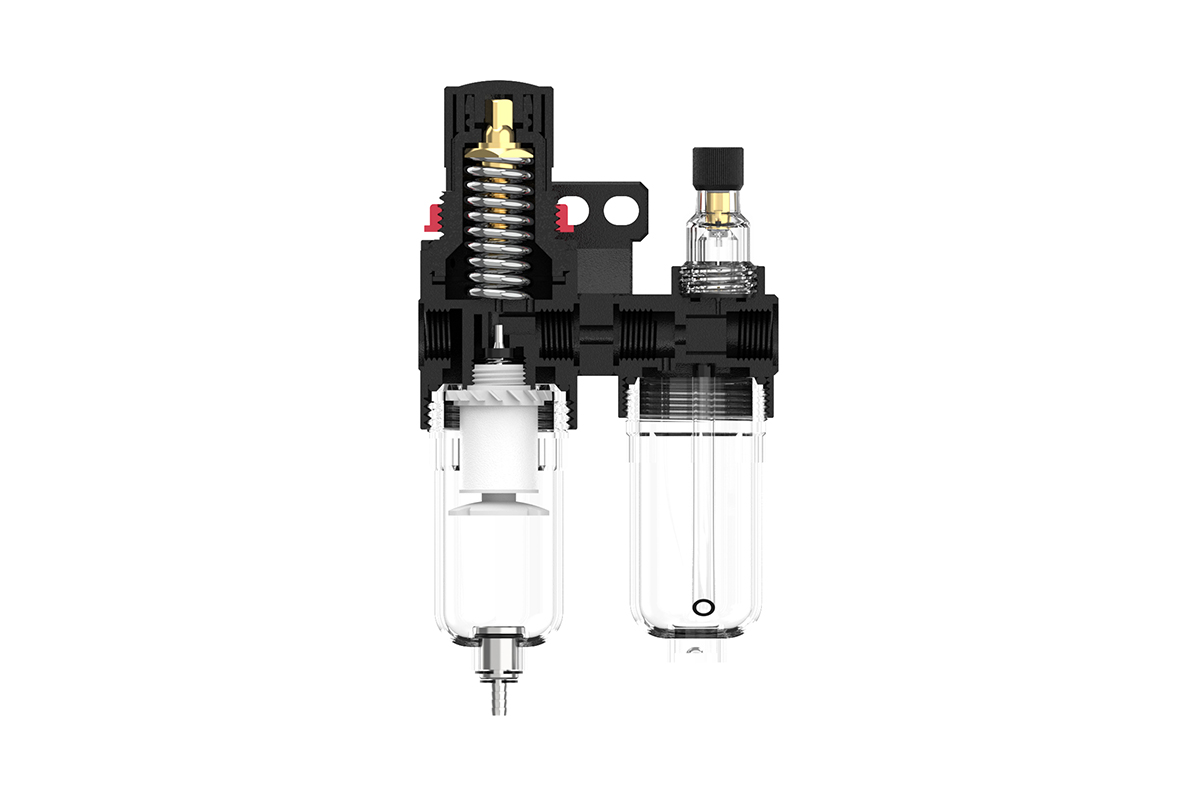

1. Preparation
All calibration components shall comply with the maximum flow rate specification.
Prior to installation, all ports and connectors shall be meticulously cleaned to prevent dust ingress into the air passage.
Ensure that the air flow direction is precisely aligned with the arrow markings on the product housing, and verify that port dimensions and thread sizes are correctly matched.
2. Pressure Adjustment
Pressure Adjustment Procedure:
Elevate the pressure gauge knob and initiate rotation:
Clockwise rotation shall gradually increase the pressure in a uniform manner, while counterclockwise rotation will decrease it.
Cease rotation once the target pressure is achieved, then firmly depress the knob. Failure to secure the knob may result in pressure leakage issues.
3. Dial Reading
Ensure the pressure gauge is securely mounted to the main structure. During pressure adjustment, monitor the gauge closely to verify that the readings increase and decrease uniformly.
4. Drainage
The drainage valve operates in an automatic mode. In the absence of pressure, it unlocks to discharge moisture, and seals when air flows through. When the water level reaches or exceeds the allowable maximum, immediate drainage is necessary; otherwise, dehumidification efficiency will be reduced. The fitting on the drainage unit is designed for connecting an air hose and can be easily detached as per specific operational requirements.
5. Oil Adjustment
Rotate the needle valve clockwise to increase the oil uptake rate. Conversely, rotating the needle valve counterclockwise will decrease the oil uptake rate or halt it entirely.
6. Refueling
Rotate the filler screw clockwise. The oil volume introduced shall not exceed 80% of the container's capacity. Upon completion of the refilling process, securely tighten the filler screw.
