AC3010-02/AC3010-03/AC4010-04/AC4010-06 F.R.L.Combination Air Filter, Regulator & Lubricator
description1
AC3010-02/AC3010-03/AC4010-04/AC4010-06

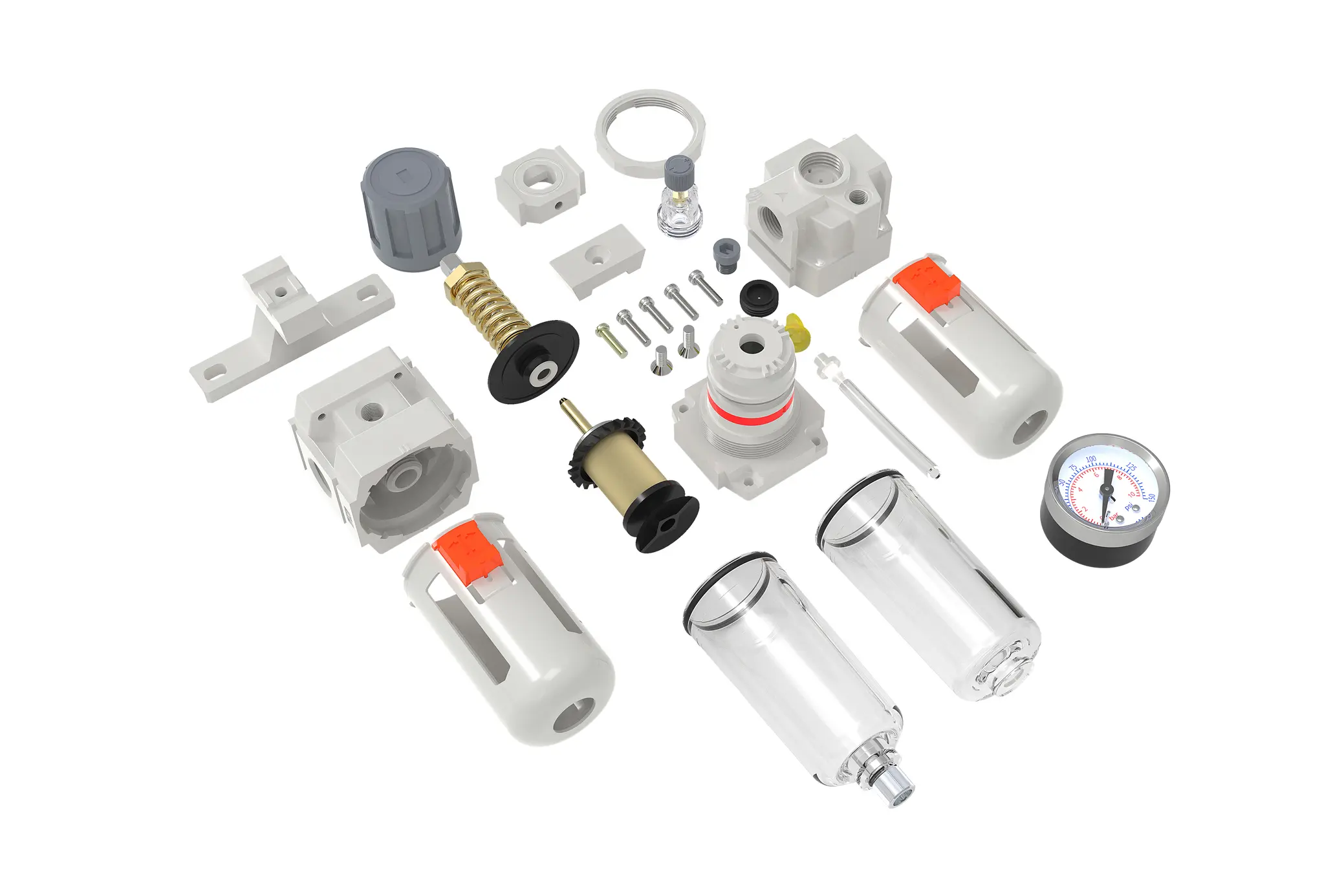

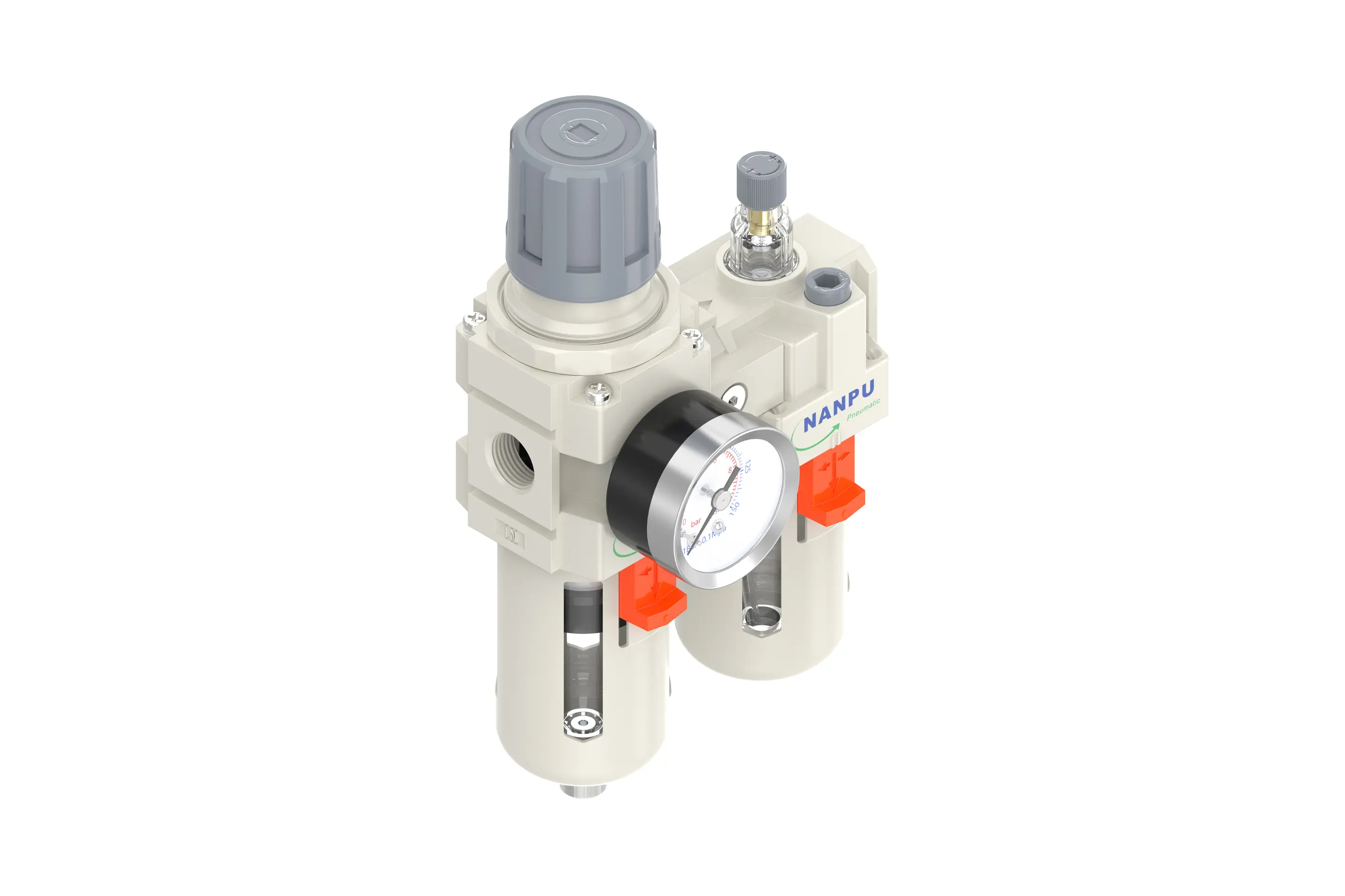

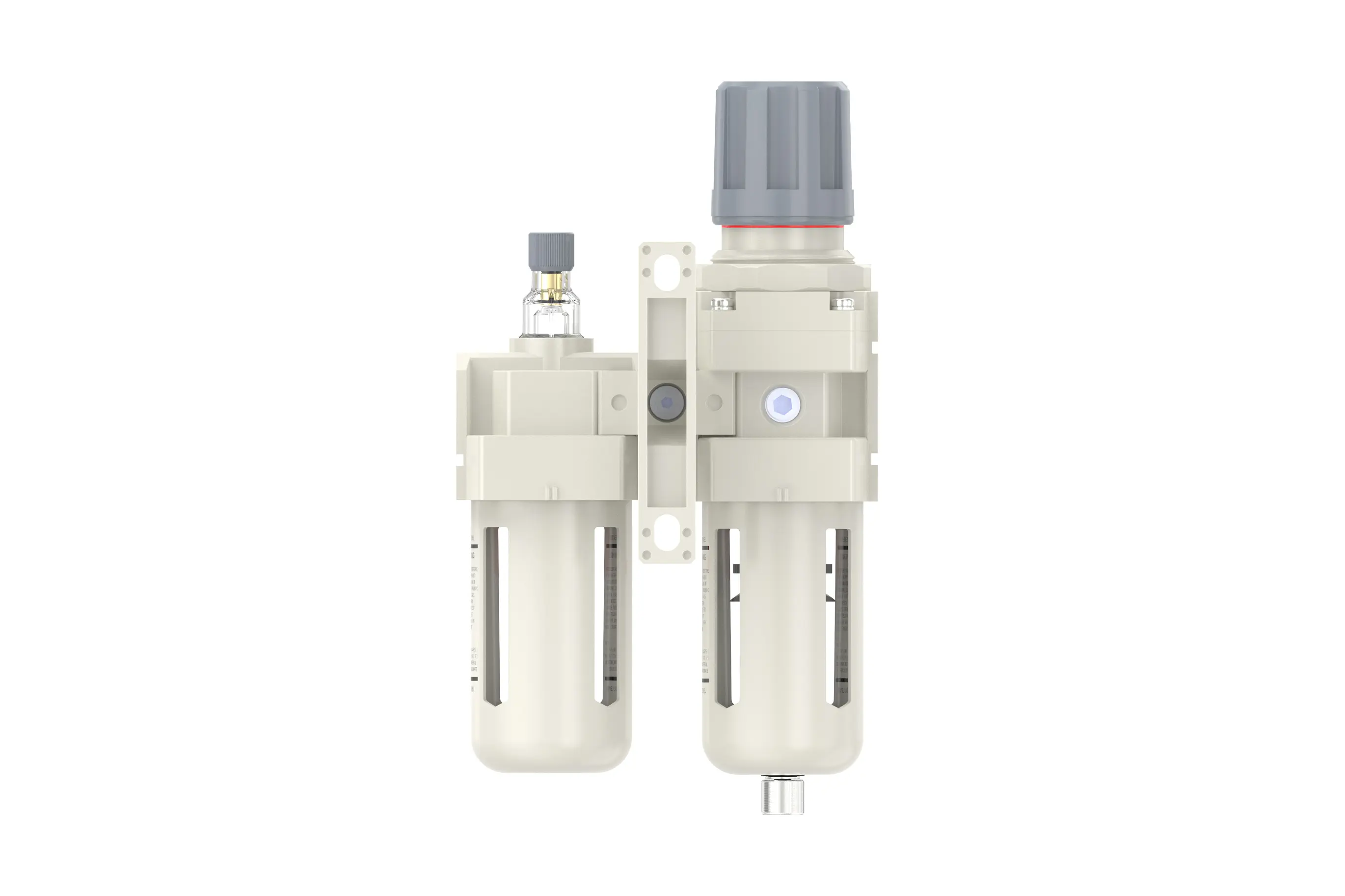

Manual Drain AC3010-02/AC3010-03/AC4010-04/AC4010-06 Portsize:1/4" 3/8" 1/2" 3/4" F.R.L.Combination Air Filter, Regulator & Lubricator

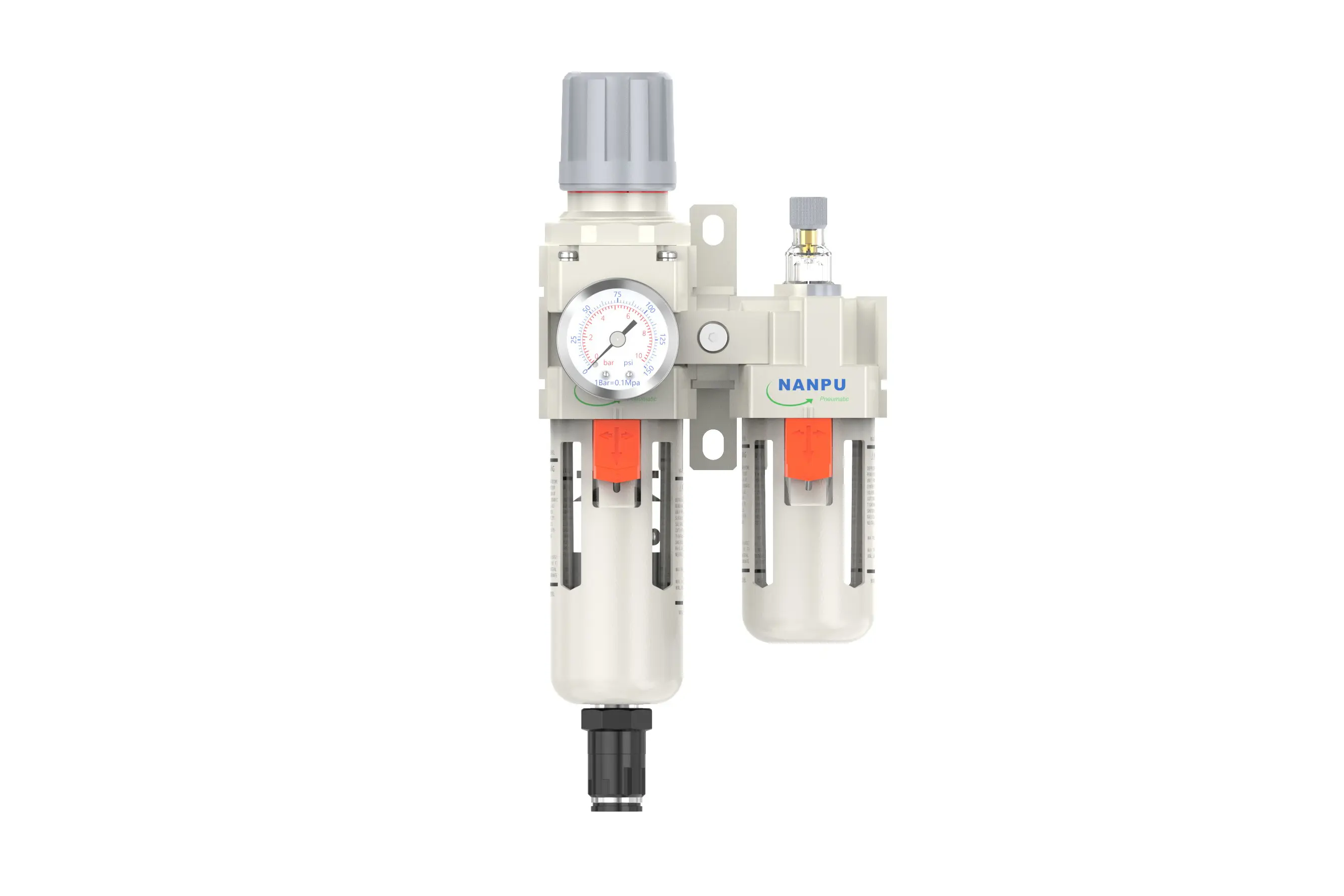

Auto Drain AC3010-02/AC3010-03/AC4010-04/AC4010-06 Portsize:1/4" 3/8" 1/2" 3/4" F.R.L.Combination Air Filter, Regulator & Lubricator
NANPUAC3010-02/AC3010-03/AC4010-04/AC4010-06
| AC | 3010 | 03 | BSP | D |
| Series Number | Body Size | Port Size | Thread Type | Drainage Method |
| 2000 | 02：1/4" | BSP | Blank: Differential Pressure Drain | |
| 3000 | 03：3/8" | NPT | A: Manual Drain | |
| 4000 | 04：1/2" | PT | D: Auto Drain | |
| 4000/5000 | 06: 3/4" | |||
| 5000 | 10: 1" |
NANPUTechnical Specifications
| Model | Model | |
| Manual Drain | Auto Drain | (L/min）Rated Flow Rate |
| AC2010-02 | AC2010-02D | 500 |
| AC3010-02 | AC3010-02D | 2000 |
| AC3010-03 | AC3010-03D | 2000 |
| AC4010-04 | AC4010-04D | 4000 |
| AC4010-06 | AC4010-06D | 4500 |
| AC5010-06 | AC5010-06D | 5000 |
| AC5010-10 | AC5010-10D | 5000 |
| Max Input Pressure | 1.2Mpa{12.24kgf/cm²} /174.04Psi |
| Max Operating Pressure | 1.0Mpa{10.2kgf/cm²} /145Psi |
| Temperature Range | 5~60℃ |
| Filtration Accuracy | 0.01μm, 5μm, 40μm |
| Bowl Material | Polycarbonate |
| Bowl Guard | AC2000 (None) AC3000~5000(YES) |
| Suggested Oil | Turbine Oil No. 1 ISO-VG32 |
| Pressure Range | AC2000~5000/0.05~0.85Mpa（0.51~8.7kgf/cm² )/0~125Psi |
1. Preparation
All calibration assemblies must comply with the maximum flow specification.
Prior to installation, thoroughly clean all ports and fittings to effectively prevent dust from entering the air passage.
Verify that the direction of the air flow aligns with the arrow markings on the product body, and ensure that the port and thread dimensions are properly matched.
2. Pressure Adjustment
Elevate the pressure gauge knob and initiate rotation. A clockwise rotation will result in a gradual and consistent increase in pressure, whereas a counterclockwise rotation will cause the pressure to decrease.
Once the desired pressure value is achieved, cease rotation and firmly depress the knob to secure it in place. Failure to perform this locking step may lead to pressure leakage issues.
3. Dial Reading
Ensure the pressure gauge is securely mounted to the main assembly. During pressure adjustment, meticulously monitor the gauge to verify that the readings exhibit consistent and unobstructed fluctuations.
4. Drainage
The drainage column operates in a self - actuating manner, automatically opening to discharge when there is no pressure and closing when airflow is present. In the event that the water level exceeds the upper threshold, immediate drainage is imperative; failure to do so will result in compromised dehumidification performance. The fitting on the drain head is designed for air hose connection, and it can be detached as per specific operational requirements.
5. Oil Adjustment
Rotate the needle valve clockwise (in the “+” direction) to augment the oil suction rate. Conversely, rotating the needle valve counterclockwise (in the “-” direction) will decelerate or halt the oil suction process.
6. Refueling
Rotate the fueling screw in a clockwise direction, ensuring that the volume of oil added does not exceed 80% of the bowl's capacity. Once the refueling process is completed, securely fasten the fueling screw.
